TAKE CARE OF YOUR TEAM

Provide a safe & clean working environment

Create a safe environment

for your patrons

FOR LOGISTIC CENTRES

HIGH-POWER DISINFECTION

Anti-Bacterial / Anti-Virus / Anti-Fungus / Anti-Mold

UVC DISINFECTION SYSTEMS

We spend more time indoors than we ever have before and the air we breathe in common spaces is anything but clean. In fact, it’s often re-circulated along with all the bacteria, viruses, pollen, smoke and toxic gases that are trapped along with it.

The research shows that up to 20% of infections, like flu, moulds, pneumonia and MRSA, are transmitted via the air, at a huge price, both in terms of human life and financial costs. Diseases like Tuberculosis are even 100% transmitted via the air.

Luxibel UVC Disinfection systems provide a safe, reliable and sustainable solution for air disinfection & purification. They work to protect against airborne pathogens, creating a safer and healthier indoor environments with the power of light.

ANTIBACTERIAL

ANTIVIRAL

ANTIFUNGAL

ANTI-MOULD

ANTI-COVID19

High Power Disinfection for Any Environment

Hospitals & Medical Institutions  /  Gyms & Training Facilities
Aged Care Facilities  /  Commercial & Retail Environments
Hotels & Restaurants  /  Schools, Education & Training Institutions
Public & Government Buildings  /  Food & Beverage Industries
Pharmacies & Medical Practices  /  Corporate Environments
TV Studios, Theatres & Cinemas  /  Warehouses & Logistic Centres
Public Transport & Transportation Hubs  /  Military

Benefits of UVC Technology

  • UVC radiation has been proven to be effective against waterborne and airborne pathogenic micro-organisms including those responsible for cholera, hepatitis, polio, typhoid, giardia, cryptosporidium and many other bacterial, viral and parasitic diseases
  • UVC installations have low capital and operation cost
  • UVC technology is environmentally friendly
  • UVC installations are easy to operate and to maintain
  • UVC radiation has no harmful effect when overdosed on surfaces, water or air
  • UVC radiation works instantly and the effectiveness does not depend on the temperature
  • UVC disinfection is a physical process: no substances are added
  • The UVC disinfection effect is directly related to the UV dose (which is the product of intensity and exposure time of the micro-organisms) so it’s  effectiveness can be simply measured once the system design is validated

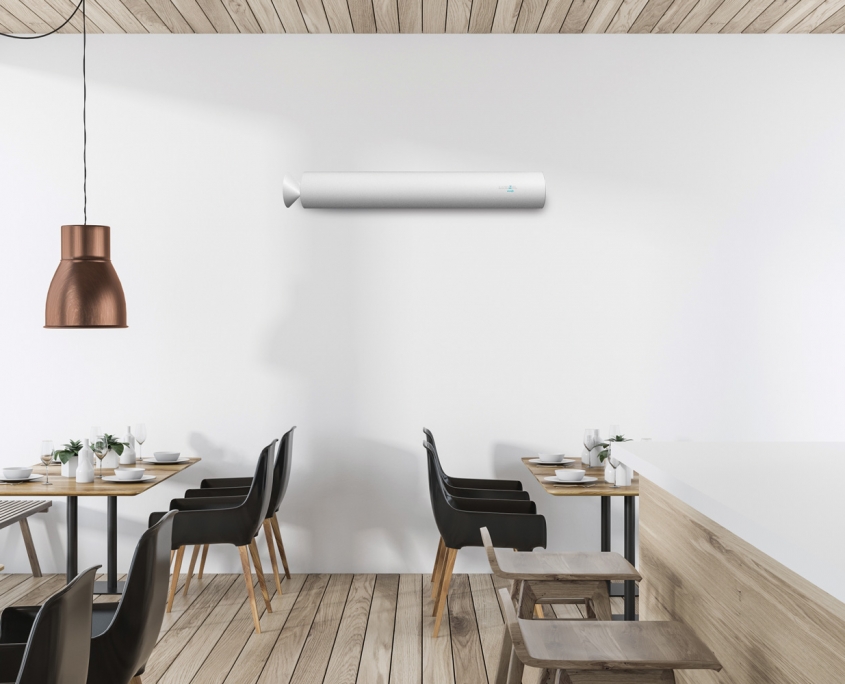

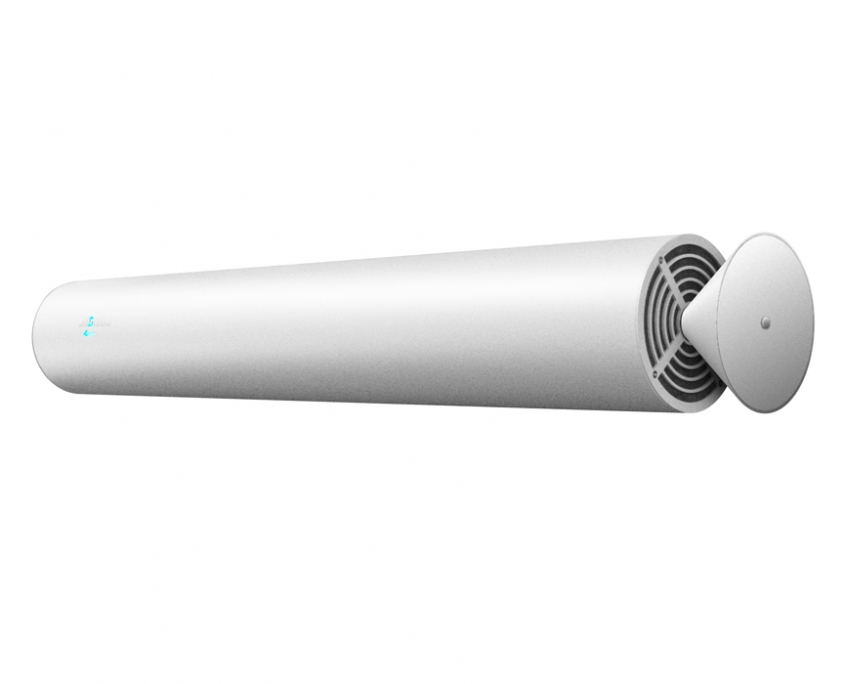

B Air

Indirect UVC air disinfection unit

Luxibel B AIR systems provide 24hr air disinfection in the presence of people, creating healthier environments in everyday living and work spaces. The indirect UVC air disinfection systems can be used in production halls, health care facilities, pharmacies, public transport, retail environment, corporate spaces and many more.

Features

ƒ 2 x 15 W Philips radiator
ƒ Wavelength of 254nm (UVC)
ƒ Mounting: wall, ceiling or tripod
ƒ Recommended uptime: 24h
ƒ Air filter replacement: depending on the usage (twice a year recommended)
ƒ Radiators replacement: once a year

Specifications

Circulation: 117 m3/h
Coverage: up to 25m²
Light Source: 2 x TUV 30W
Protection Rating: IP20
Power Consumption: 88W
Voltage Range: AC220-240V 50/60Hz
Unit Dimensions: 1300 x 250 x 305mm
Weight: 9.0kg

Optional Accessories

Mounting Arm
Wireless Control (individual)
Movement Sensor
Activated Carbon Air Filter

UVC Calculator
UVC Product Brochure B Air Specifications

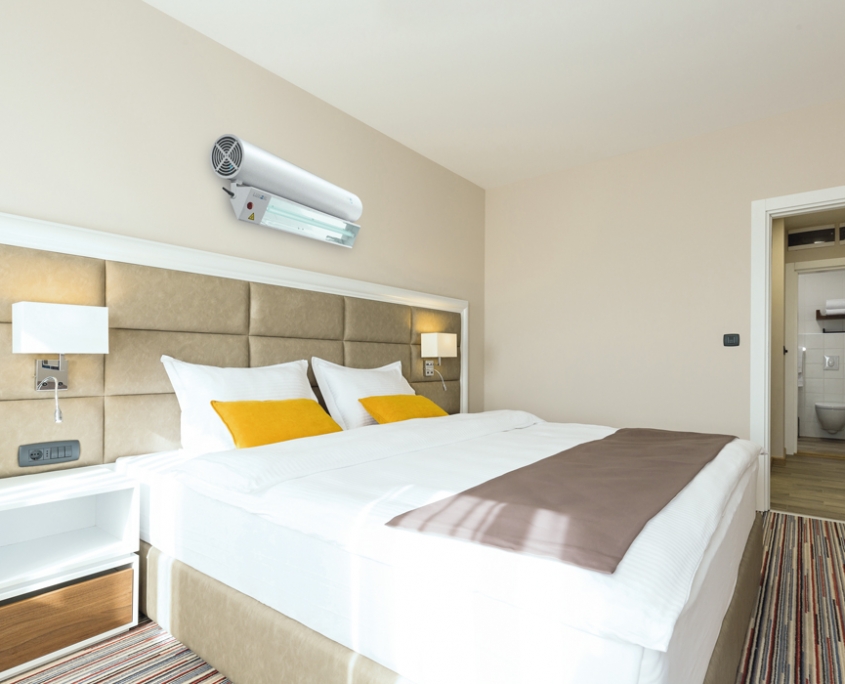

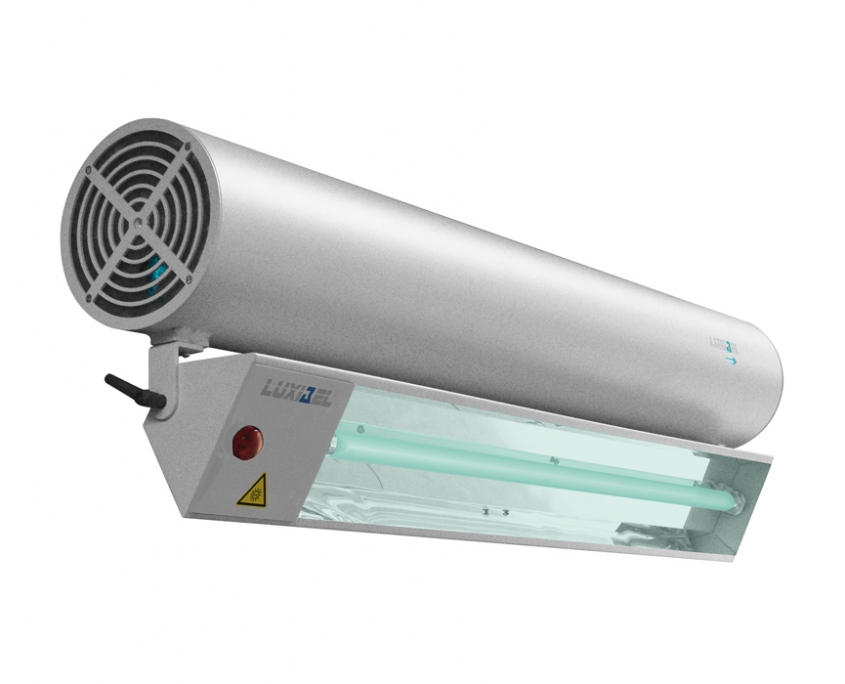

B Hybrid

Direct & Indirect disinfection unit

Luxibel B HYBRID systems provide 24/7 air purification in populated environments as well as surface disinfection when the spaces are vacant. All B HYBRID systems are equipped with double safety system including movement sensor and an alarm beeper & LED light.

Features

ƒ Disinfection time > 15 min
ƒ 2x 15 W+ 1x 20 W Philips radiator
ƒ Wavelength of 254nm (UVC)
ƒ Mounting: wall, ceiling or tripod
ƒ Recommended uptime: 24h
ƒ Protective foil for radiator (on request)
ƒ Air filter replacement: depending on the usage (twice a year recommended)
ƒ Radiators replacement: once a year
ƒ Double security with movement sensor and LED light + sound alarm

Specifications

Circulation: 117 m3/h
Coverage: up to 22m² direct / 25m² indirect
Light Source: 1 x TUV 55W HO & 2 x TUV 30W
Protection Rating: IP20
Power Consumption: 138W
Voltage Range: AC220-240V 50/60Hz
Unit Dimensions: 1300 x 245 x 180 mm
Weight: 11.0 kg

Optional Accessories

Mounting Arm
Wireless Control (individual)
Activated Carbon Air Filter

UVC Calculator
UVC Product Brochure B Hybrid Specifications

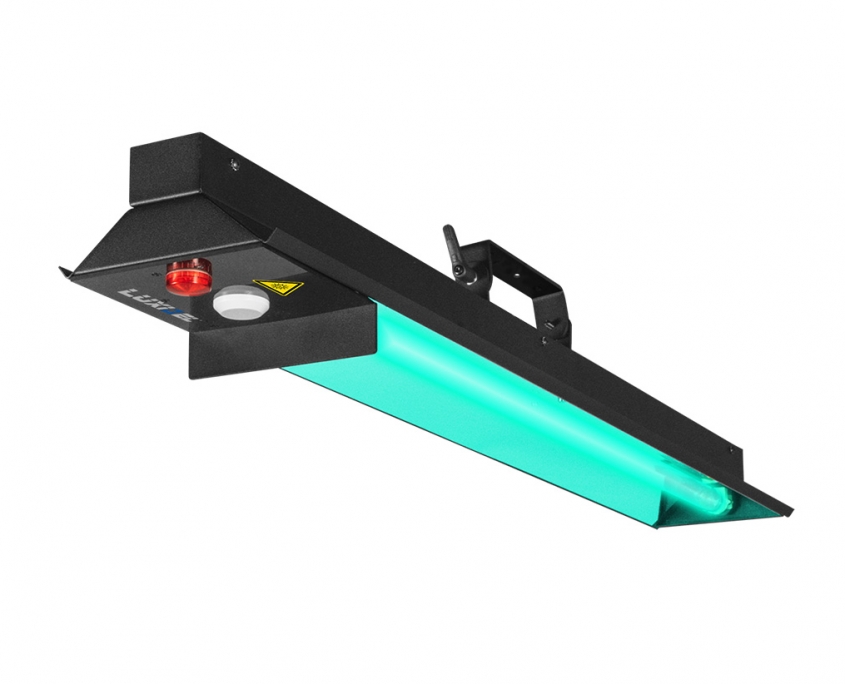

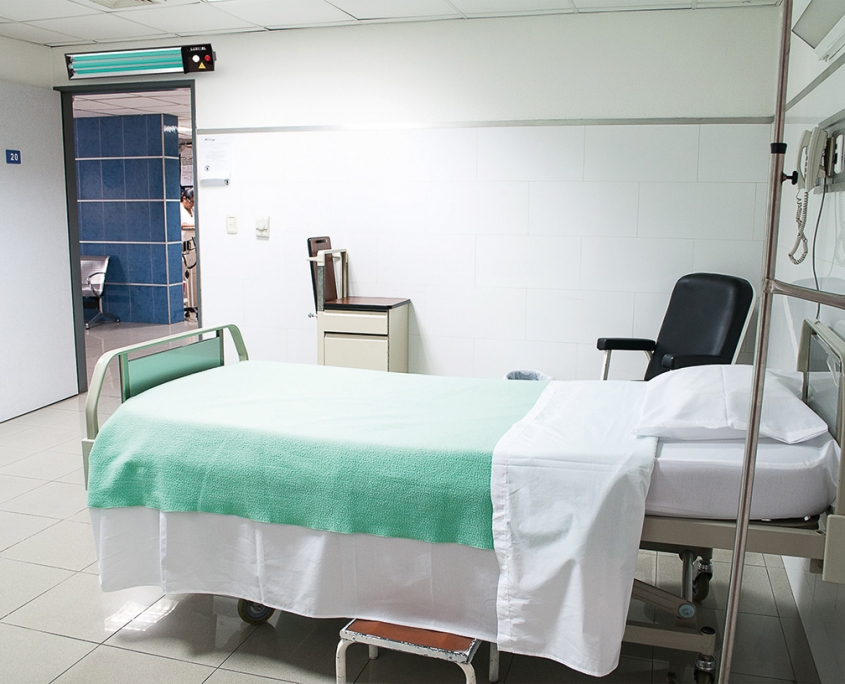

B Direct

Single Direct UVC radiator with reflector

Luxibel B DIRECT systems provide a safe solution to disinfect both air and surfaces. The units feature a built-in safety system including movement sensors and LED light & alarm. The B DIRECT disinfects air and surface (up to 22 m²), prevents secondary infections and eliminates bacteria, viruses and fungal and mould spores in the air.

Features

ƒ Disinfection time < 15 min ƒ Wavelength of 254nm (UVC) ƒ 1 x 20 W Philips radiator ƒ Mounting: wall, ceiling or tripod ƒ Protective foil for radiator (on request) ƒ Radiators replacement: once a year ƒ Double security with movement sensor and LED light + sound alarmSpecifications

Coverage: up to 22m²
Light Source: 1 x TUV 55W HO
Protection Rating: IP20
Power Consumption: 57W
Voltage Range: AC220-240V 50/60Hz
Unit Dimensions: 940 x 135 x 165mm
Weight: 5.0kg

Optional Accessories

Mounting Arm
Wireless Control (individual)
Movement Sensor

UVC Calculator
UVC Product Brochure B Direct Specifications

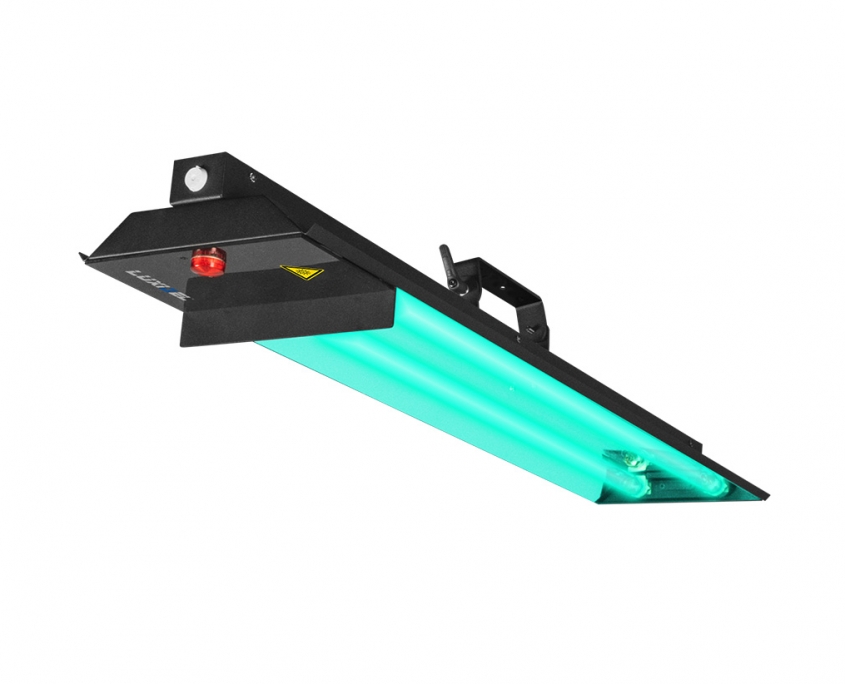

B Direct II

Double Direct UVC radiator with reflector

B Direct II disinfects air and surface (up to 38 m²), prevents secondary infections and eliminates bacteria, viruses and fungal and mould spores in the air. All B DIRECT systems feature a built-in safety system including movement sensors and LED light & alarm.

Features

ƒ Protective foil for radiator (on request)
ƒ Radiators replacement: once a year
ƒ Double security with movement sensor and LED light + sound alarm
ƒ Disinfection time < 15 min ƒ Wavelength of 254nm (UVC) ƒ 2 x 20 W Philips radiator ƒ Mounting: wall, ceiling or tripodSpecifications

Coverage: up to 38m²
Light Source: 2 x TUV 55W HO
Protection Rating: IP20
Power Consumption: 112W
Voltage Range: AC220-240V 50/60Hz
Unit Dimensions: 940 x 135 x 165mm
Weight: 5.3kg

Optional Accessories

Mounting Arm
Wireless Control (individual)
Movement Sensor

UVC Calculator
UVC Product Brochure B Direct II Specifications

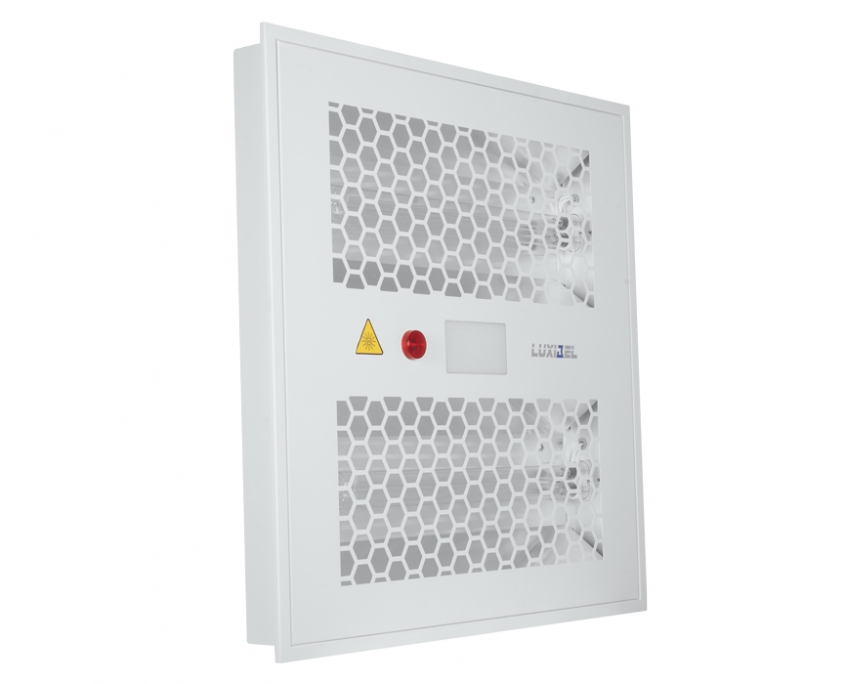

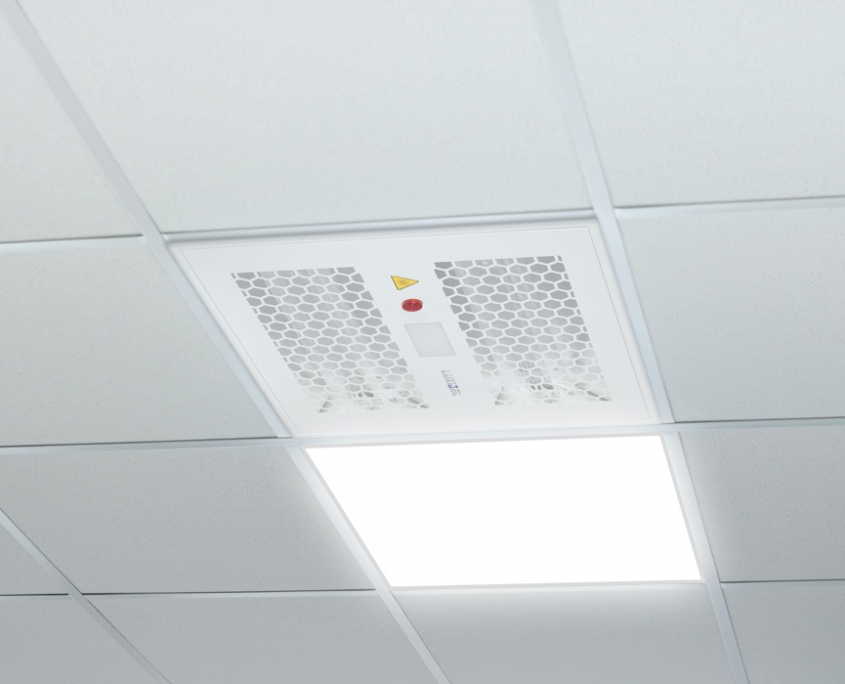

B Square

Recessed direct UVC surface disinfection unit

B Square is a disinfection unit for mounting in ceiling that disinfects surfaces, prevents secondary infections and eliminates bacteria, viruses and fungal and mold spores in the air. All direct radiating fixtures have a standard double security with a moving sensor and an audio visual alarm. It can be used in production halls, hospitals, health care facilities, pharmacies, public transport and many more.

Features

ƒ Lamp life: > 9.000 hrs
ƒ 360° RF movement sensor
ƒ Visual and audio alarm (70 dB)
ƒ Fits straight into ceiling system
ƒ Suspended on 4 springs for lowered ceiling

Specifications

Wavelength: 253.7nm
Light Source: 2x TUV PL-L 60W (Phillips)
Protection Rating: IP20
Power Consumption: 124W
Voltage Range: 230V 50Hz
Unit Dimensions: 595 x 595 x 80 mm
Weight: 4.8kg

UVC Calculator
UVC Product Brochure B Square Specifications

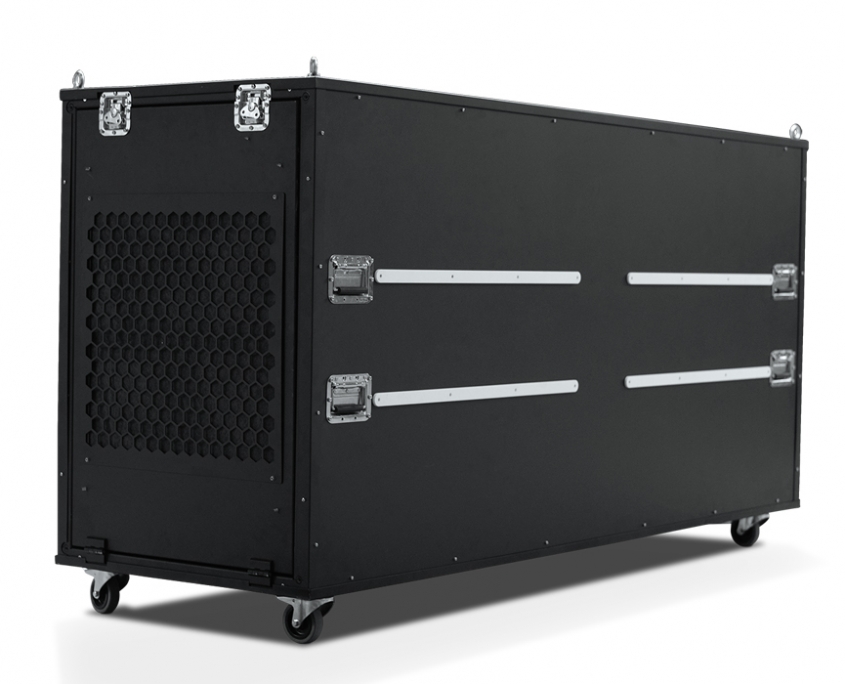

B Cannon

High Volume Disinfection Unit

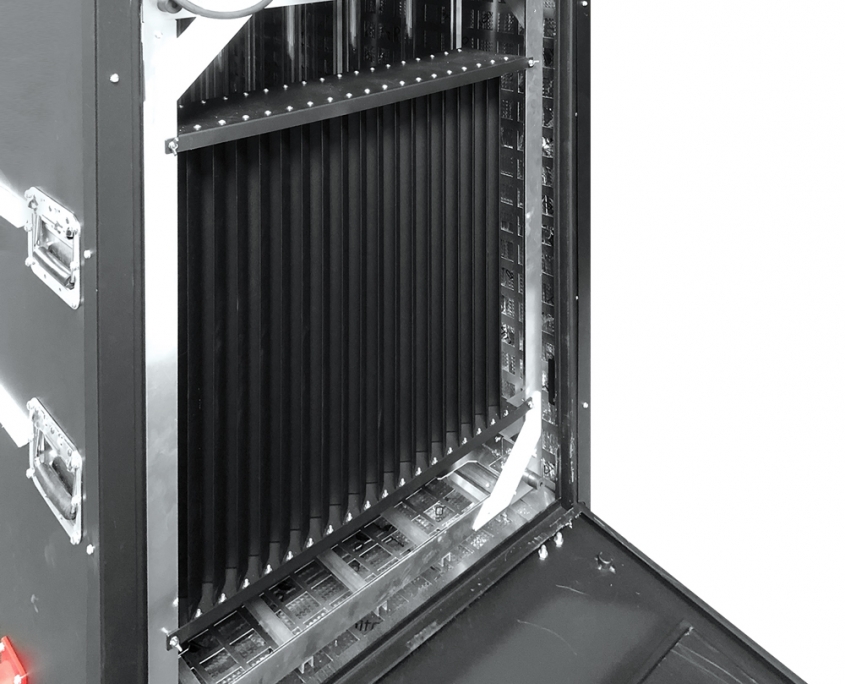

B Cannon is a high volume air disinfection unit for large scale venues. Its high air flow capacity and very high internal UVC disinfection, makes sure that all microorganisms are effected inside the B Cannon. No UVC radiation escapes from the unit due to the use of light traps (air passes through, while (UV)-light is blocked).

B Cannon is the perfect solution to disinfect large venues like concert & exhibition halls, sports arenas, shopping malls, production facilities, airports & train stations…

Features

ƒ Fan capacity: 12.000 m³/h
ƒ 30x TUV 55W HO Philip

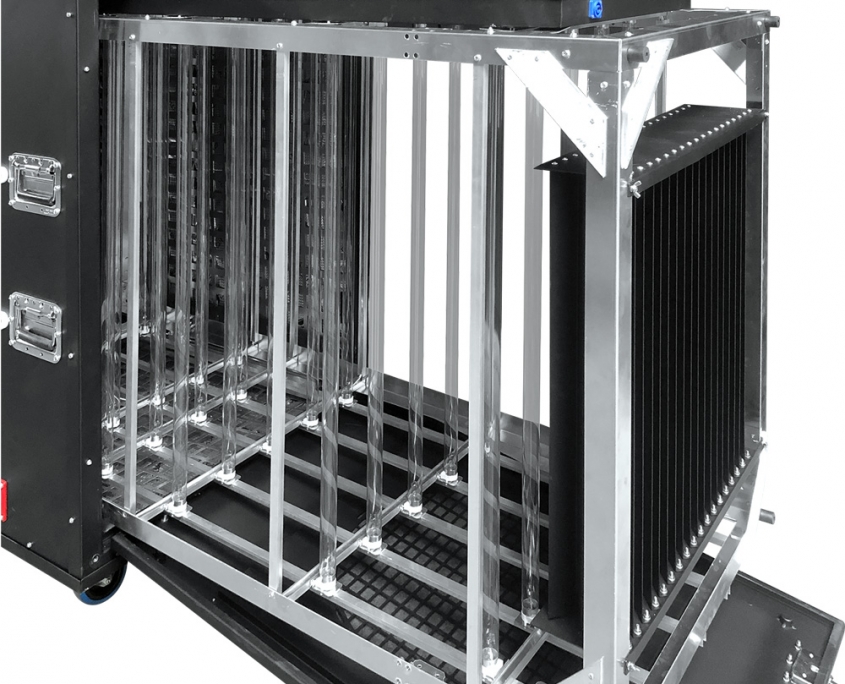

ƒ Easy and fast maintenance thanks to rail system
ƒ Control: manual, DMX or remote (optional)
ƒ Recommended uptime:24h
ƒ Mounting: hanging or standing
ƒ MADS to create an airflow (optional)

Specifications

Lightsource: 30x TUV 55W HO (Philips)
Wavelength: 253.7nm(254nm)
Lamplife: 9,000 hours
Fan noise level @ 1m centre 95 dm
Fan capacity: 12.000 m³/h
Voltage: 3x230V; 50HZ – 16A
Power Consumption: 4.680 W
Weight: 265kg
Dimensions: 2,395 x 1,265,8000

Optional Accessories

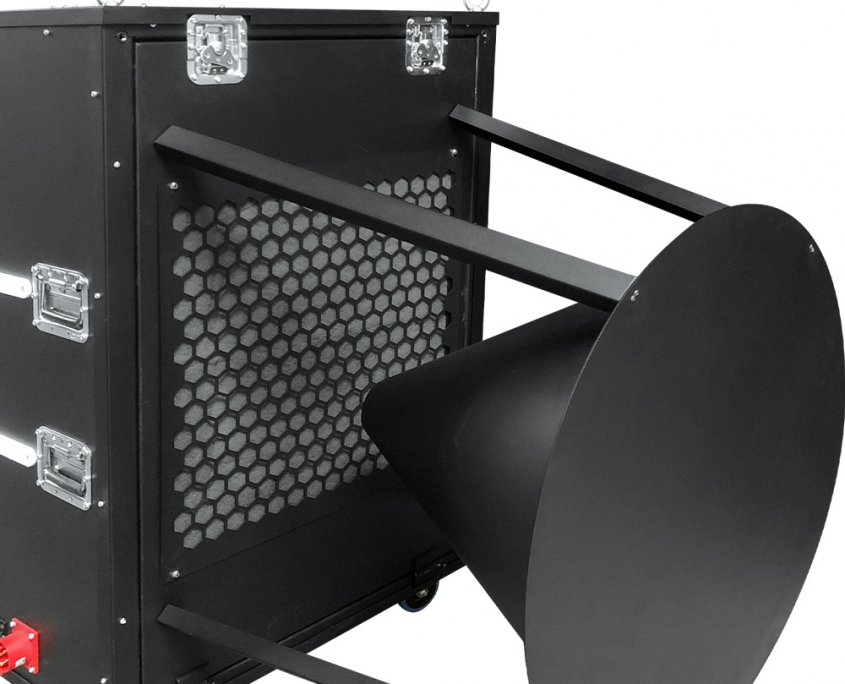

Option Nozzle

UVC Calculator
UVC Product Brochure B Cannon Specifications
